Benchtop IR Concentrator
Catalogue No.
Supplier
|
Catalogue No.

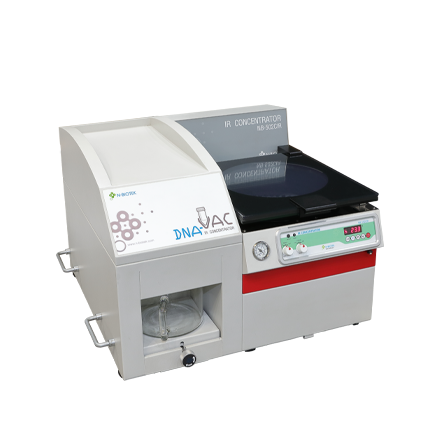

Benchtop IR Concentrator
Benchtop IR Concentrator
Temp. Range: +35°C ~ 65°C
RPM Range: Max up to 1,500 rpm
✓ New IR-emitting plate glass lid for effective concentration
✓ Wide selection of rotor
✓ Teflon-Coated Chamber and Diaphragm Pump for Corrosion Resistance

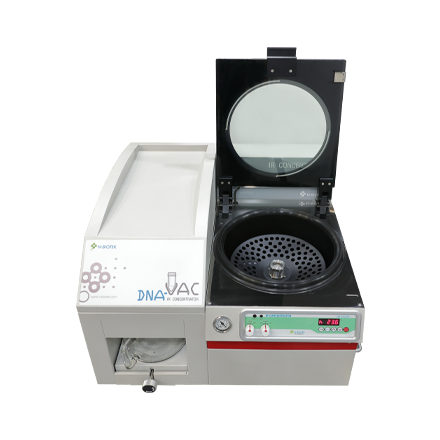

Infrared Emitting Glass Lid
The infrared (IR) glass lid, highly resistant to chemical substances, enables fast and uniform evaporation of samples even inside the vacuum chamber, reducing concentration time.
The integrated diaphragm vacuum pump provides a stable vacuum environment, enhancing the efficiency and speed of the sample concentration process.
The vacuum port is located at the center of the rotor to minimize cross-contamination between samples and ensure stable, uniform vacuum distribution.
| MODEL | NB-502CIR | |
|---|---|---|
| Loading Capacity | 1.5ml Micro-Tube x 132ea 15ml Tube x 12ea, 50ml Tube x 8ea, 96-Well Microtiter Plate x 2ea |
|
| Temperature | Range | +35°C to 80°C |
| Accuracy | – | |
| Increment | 0.1°C | |
| Control | Microprocessor Digital PID | |
| Heat Mode | Selectable 3 Mode IR/IR & Heat/Heat | |
| Standby | Preheat | |
| RPM | Range | ≥1,500rpm |
| Accuracy | – | |
| Increment | – | |
| Control | – | |
| Time | Range | Continuous or 99h 59min |
| Accuracy | – | |
| Increment | – | |
| Vacuum | Pump | Chemically Resistant PTFE-Coated Diaphragm Pump |
| Ultimate | 8mbar / abs | |
| Gauge | Analog Vacuum Gauge | |
| Oper. Pressure | – | |
| Atm. Pressure | – | |
| Cold Trap | ≤ -20 °C | |
| Alarm | ||
| Chamber Material | – | |
| Motor | – | |
| Display | LED Display | |
| Operating Panel | Tact Switch Buttons | |
| Dimensions | Interior | – |
| Exterior | 670(W)×685(D)×480(H)mm | |
| Weight | – | |
| Power (110V available) | AC220V, 50/60Hz | |
| Power Consumption | 890W |
