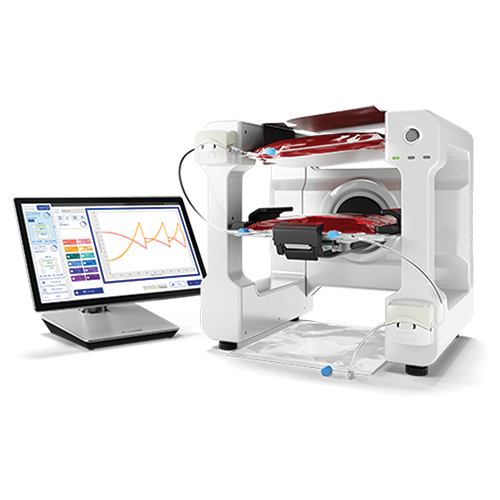

LiCellGrow

Continuous measurement by the in-line sensors allows visualization of glucose and lactate concentration evolution

Glycolysis is one of the major energy metabolism pathways in cells. Since in this process glucose is consumed and lactate is produced, changes of their concentrations are a useful index for cell vitality. The Culture Bag is equipped with an in-line sensor, which measures glucose and lactate in real time as continuous in-line data.

Brand: PHCbi
SKU: LiCellGrow
Categories: Cell Analyzers

Download Catalogue Get a Quote

Select

Culture medium is replaced automatically based on real-time measurement and analysis

The Real-time Wave-mixing Bioreactor measures the concentrations of glucose and lactate in real-time and automatically replaces the culture medium based on the measured values. An optimal and stable supply of glucose is guaranteed and exposure to elevated levels of lactate is avoided.

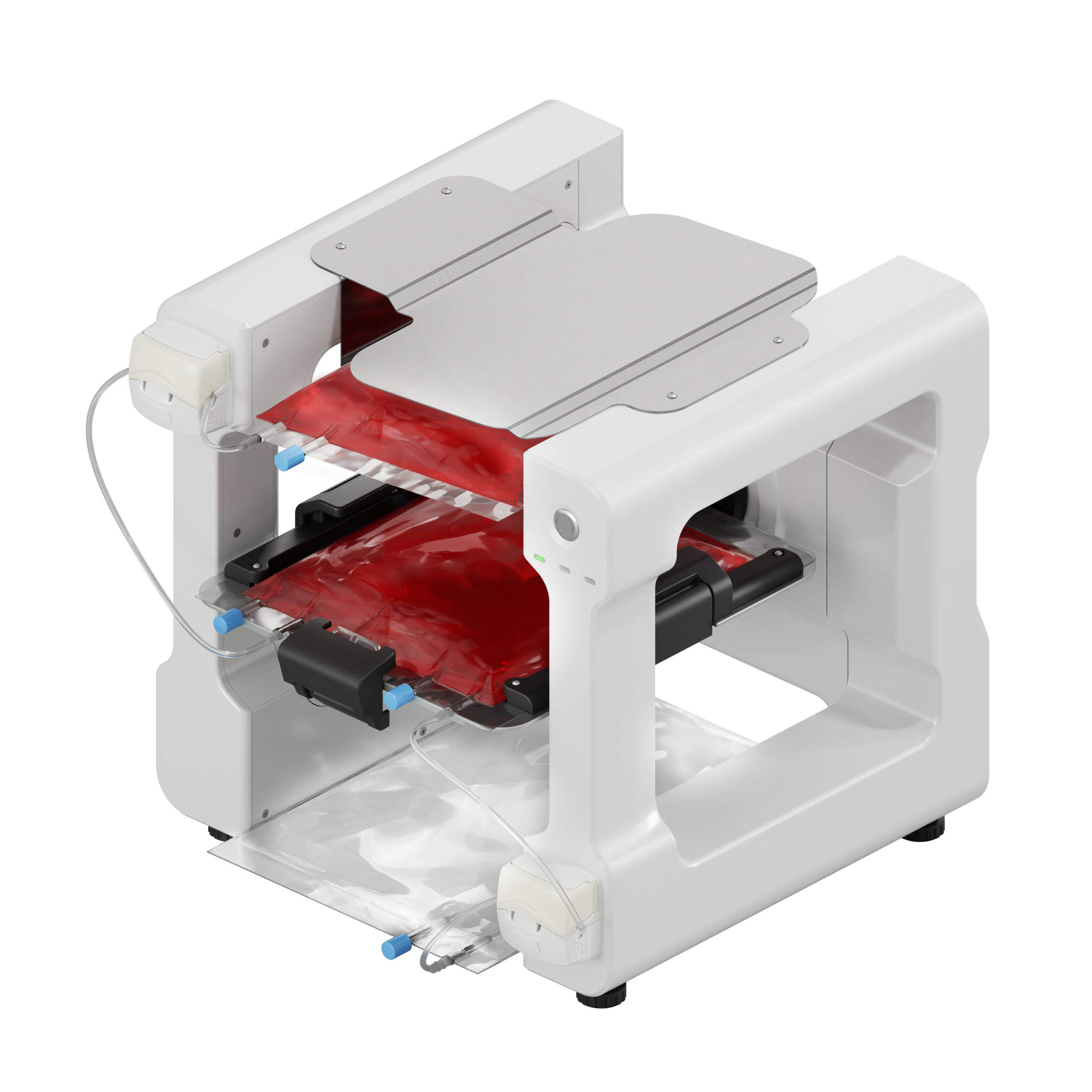

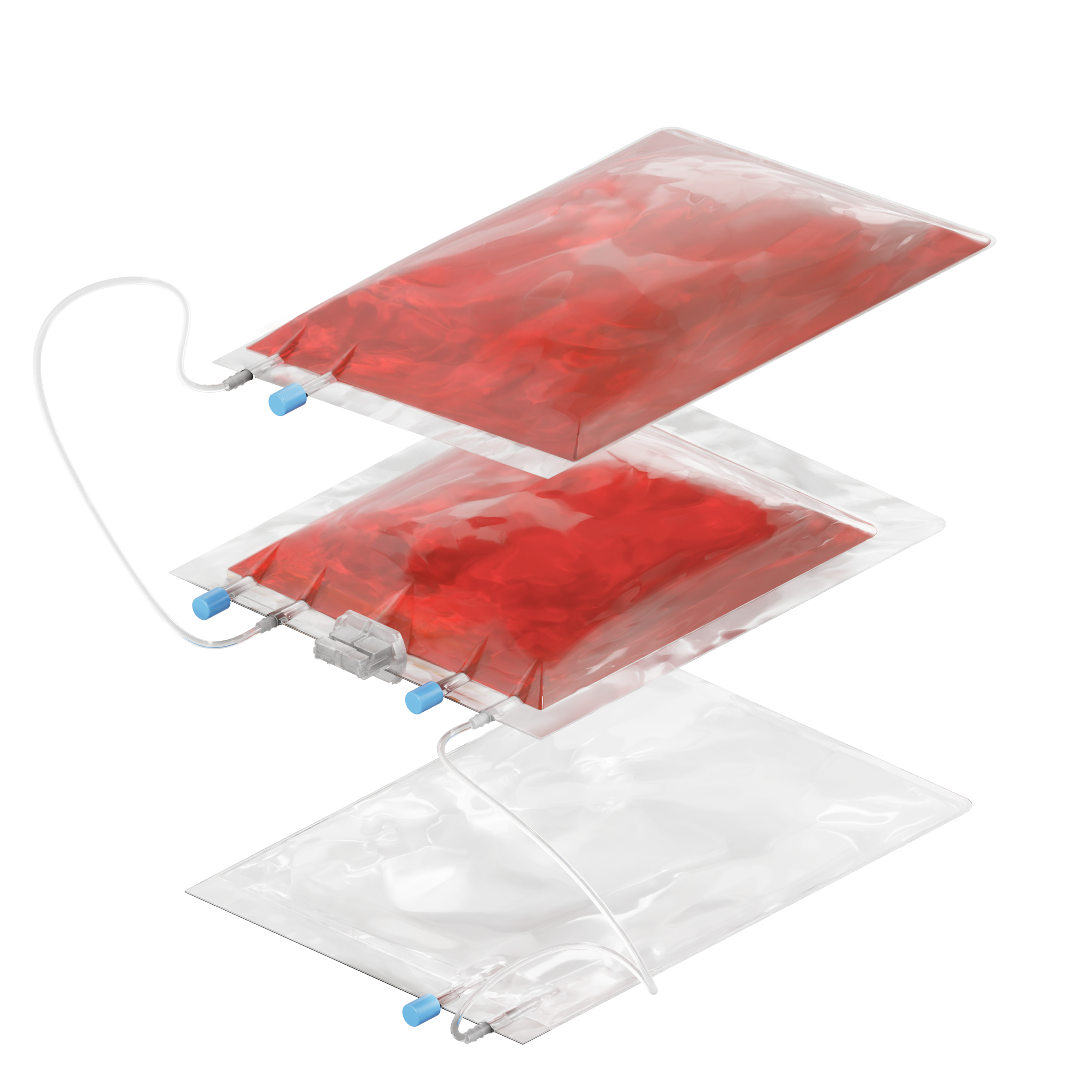

Closed system cell culture with single-use Culture Bags
The dedicated Culture Bags are gas-permeable, single-use bags, each fitted with an In-Line Sensor. This system eliminates the need for sampling, greatly reducing the risk of contamination.

Highly reproducible cell culture with guaranteed sterility
The Culture Bags with in-line sensors are gamma-irradiated before supply and simply need to be fitted to the device to ensure a sterile environment for highly reproducible cell cultures.

Specifications

Product Overview

Monitoring parameters	Glucose, lactate (simultaneous measurement of both parameters) pH/DO (simultaneous measurement of both parameters) *Please contact our service office or sales agency.
Main device components	Processor, controller
Main consumables (single use)	Culture Bag, Sensor Helder, Reservoir Bag, Waste Bag, Activation Bag
Culture Bags Capacity	500 ml (minimum culture volume 100 ml) 1000 ml (minimum culture volume 300 ml)
Main Device Components	Processor, controller
Monitoring time	Maximum 10 days
Measurement ranges	Glucose: 1-27 mM Lactate: 1.5-15 mM pH: 6.5-8.0 DO: 0-250% a.s. (a.s.= air saturation)s Reservoir waste bag capacity 3000 mL

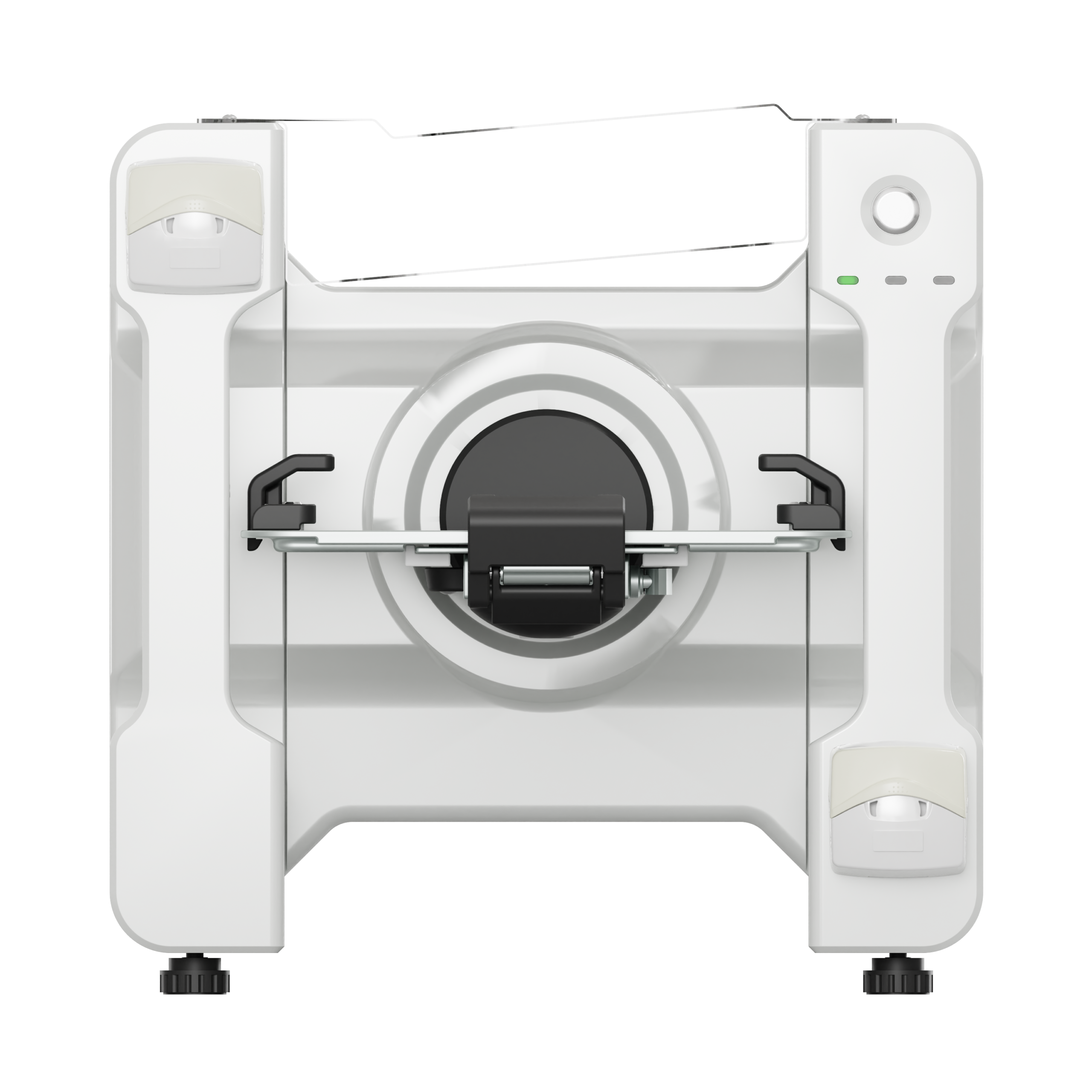

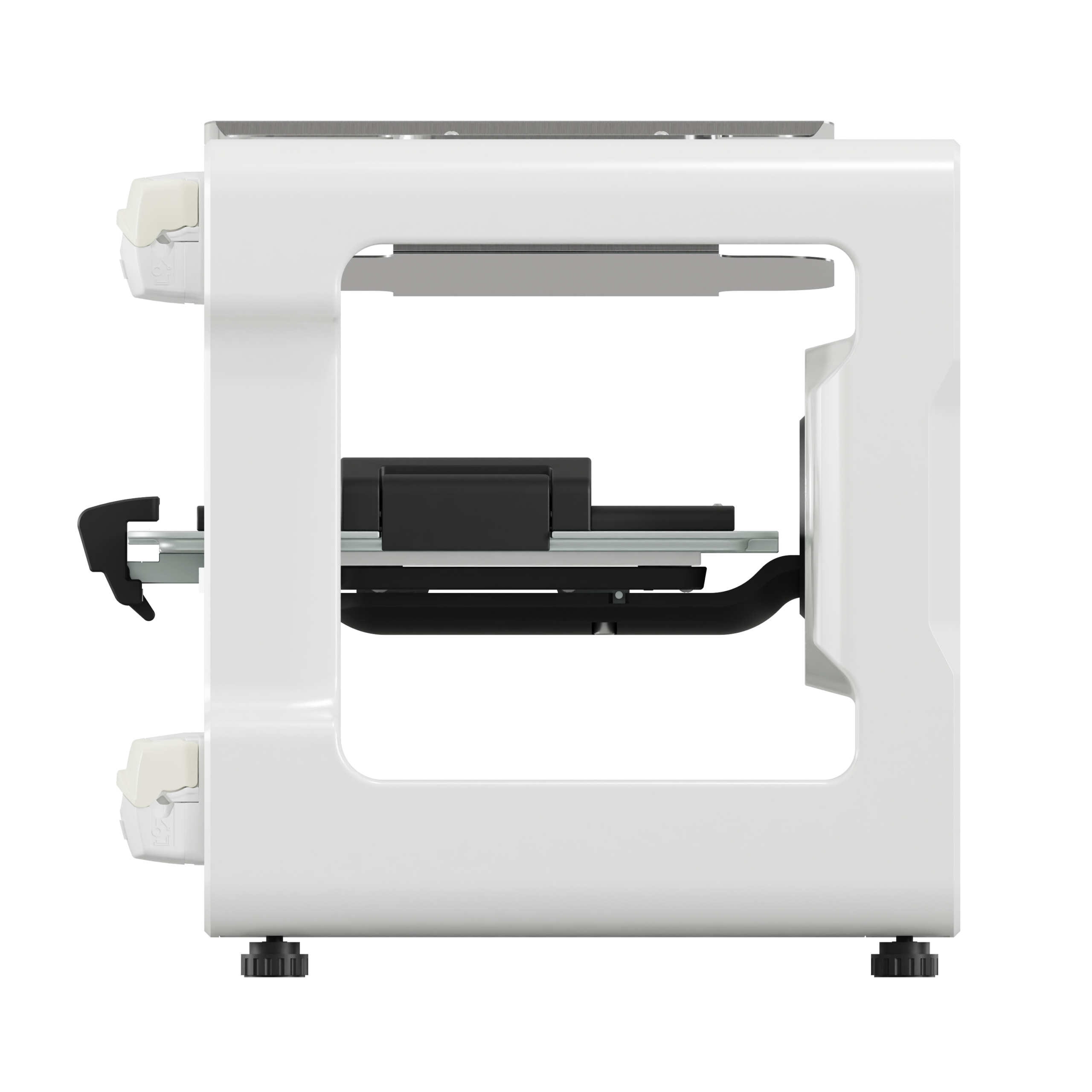

Processor

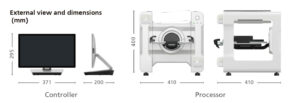

Dimensions	Width 410 mm x Depth 430 mm x Height 405 mm

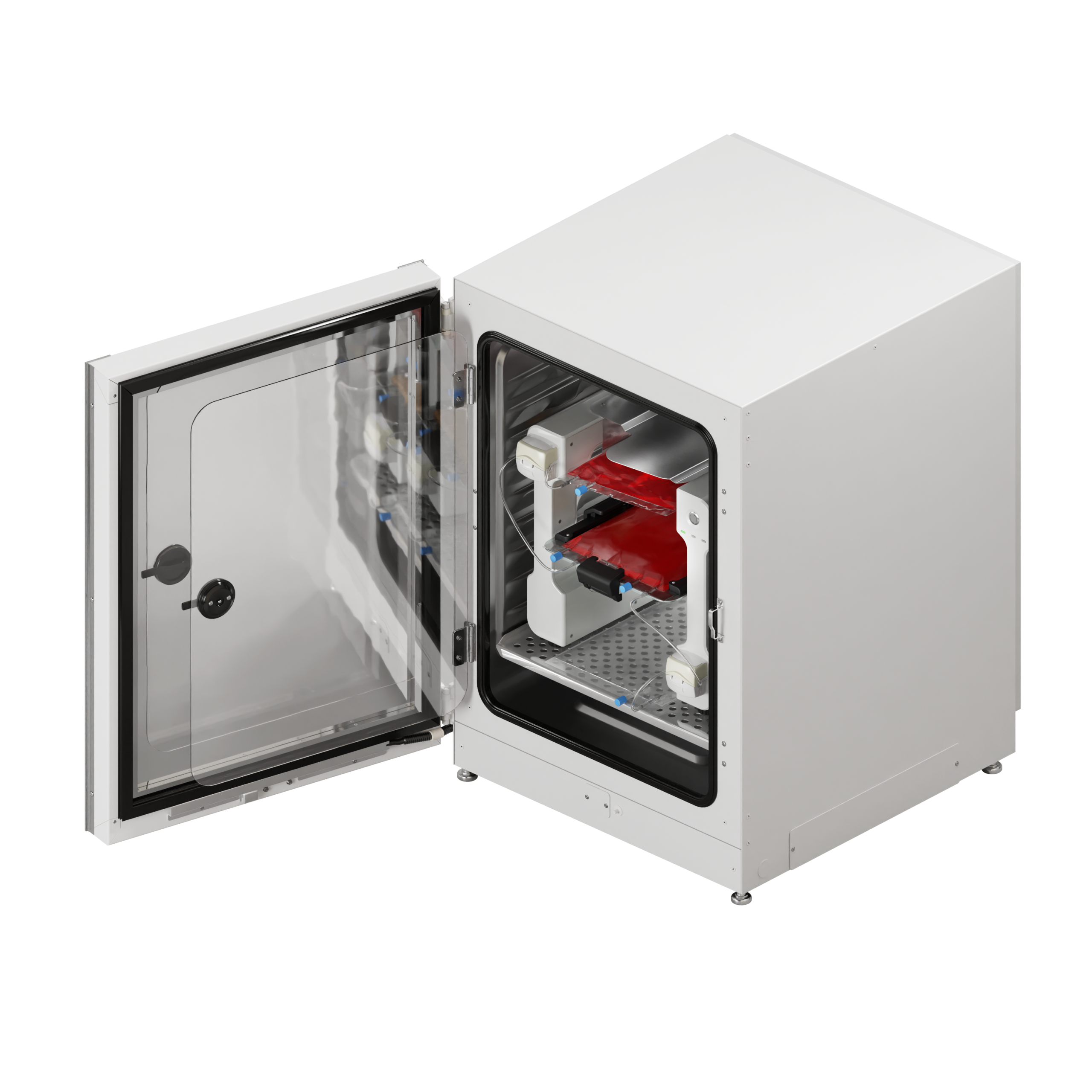

Installation	Inside C02 incubator

Controller

Dimensions	Width 371 mm x Depth 200 mm x Height 295 mm
Screen	15.6-inch wide touch-panel display
