Multifors 2

Catalogue No.

Multifors 2
  • Description
  • Features
  • Key Features

Supplier

Infors HT

|

Catalogue No.

Multifors 2

Bioreactor

Manage multiple bioreactor vessels in parallel while mitigating risks during scale-up.
Increase efficiency during process development and characterization by configuring your Multifors® 2 bench-top bioreactor with the same sensor technology as your production bioreactor systems.

  • Description
  • Features
  • Key Features
Description icon

Manage multiple bioreactor vessels in parallel while mitigating risks during scale-up.
Increase efficiency during process development and characterization by configuring your Multifors® 2 bench-top bioreactor with the same sensor technology as your production bioreactor systems.

Features icon
Vessel
  • Working volume from 3 to 30 l
  • Double jacket made of 316L stainless steel
  • Individually configurable with a selection of different impellers, spargers and special accessories
  • Up to 14 ports for sensors (anti-foam, optical density, pH, pO2, redox, conductivity, live cell density, etc.)
  • 1 port in the bottom of the vessel for harvesting/sampling
High-performance pumps
  • Basic setup includes four easy-load precision pumps per culture vessel (option of two more)
  • Gravimetric feeding (with external scale)
  • Profile-based pump-speed control with eve®
Gassing
  • Customer-specific gassing with up to 5 gas lines, either via a sparger or in the headspace
  • Feed via rotameter or mass-flow regulator
  • Cascades may be configured in serial or in parallel for controlling the pO2 via the stirrer speed, gassing rate, gas composition, etc.
  • pH control with acid and CO2
Sensors
  • Customers may choose from digital (Modbus) or analog sensors.
  • Product calibration of the pH sensor for reliable measurements during long-running bioprocesses
  • If required, additional sensors and actuators can be connected.

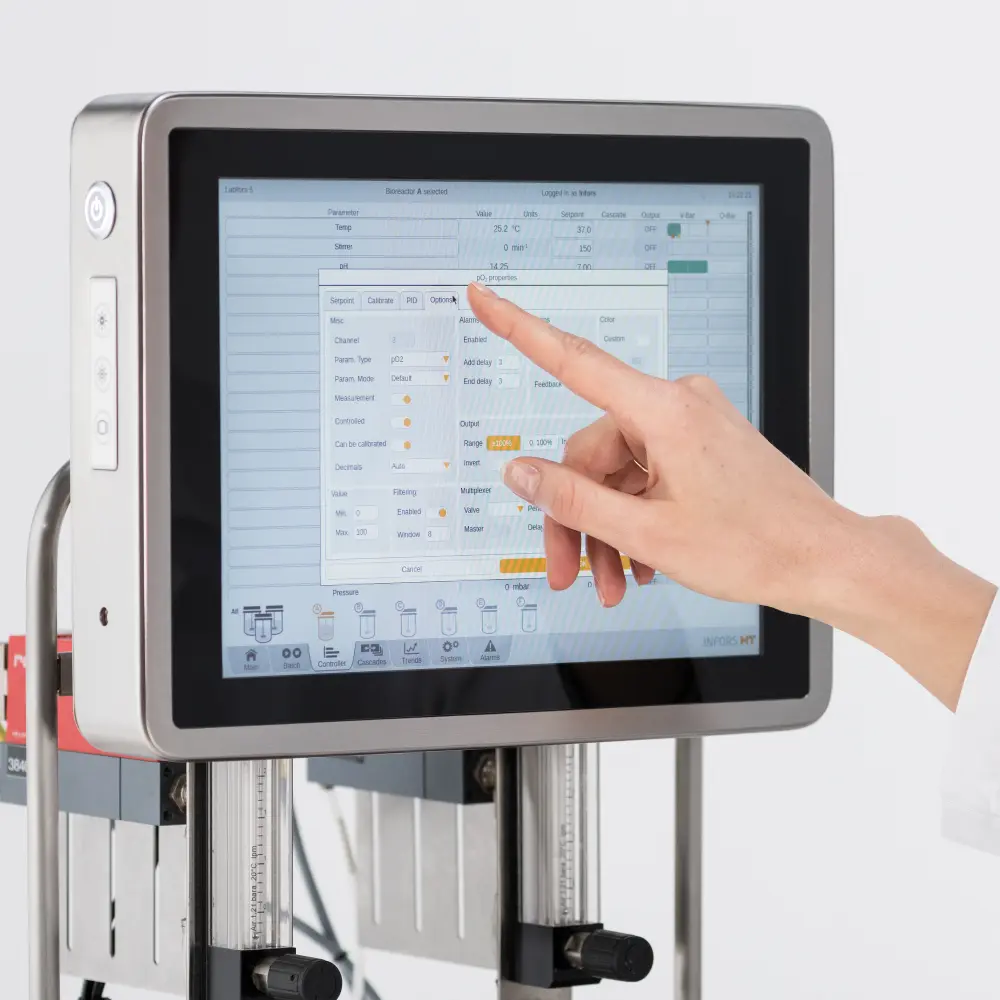

12″ Touchscreen Controller
  • Touchscreen with integrated OPC server
  • Reliable measurement and setting of the bioprocess parameters and communication with eve®
  • Up to 24 selectable parameters, such as temperature, stirring speed, pH, pO2, anti-foaming agent, feed
eve® Bioprocess Platform Software
  • Planning, controlling and analysing bioprocesses
  • Integrated workflows, devices and bioprocess knowledge
  • Integrates bioreactors and analytical instruments, regardless of the manufacturer
  • Web-based project organisation
  • Communication using the latest OPC UA (Minifors 2) or OPC XML-DA standard (Multifors 2, Labfors 5, Techfors-S, Techfors)
  • Synchronisation of process-related events such as sampling or inoculation

Technical Details

Compare

Key Features icon

Maximum options while minimizing contamination risks
The magnetic drive system allows for maximum headplate ports and ergonomics while minimizing the contamination risk and wear on components; capable of 1600 RPM operation for extended continuous batches.

Increase productivity and minimize downtime within existing lab space
Save time, space, and resources with optimized parallel bioprocessing, operating up to 6 Multifors® bioreactor vessels from one touchscreen control. With a small footprint and robust housing, you can make the most of your bench space.

Easily scale-up your process
Be prepared to scale-up from the bench using the same sensor technologies as the larger scale bioreactors, delivering comparable data. Optional PAT tools are available to offer a straightforward way of preparing for later production at bench or pilot-scale bioreactors.

Product specifications
Vessel sizes (and working volumes): 400 mL (115 – 250 mL), 750 mL (180 – 500 mL), and 1400 mL (320 – 1000 mL)
Small footprint: 45 x 38 cm (18 x 15 in) with integrated pumps, reagent holders, and mass flow controller (MFC)
Glass vessels available in total volume range from 0.4 L to 1 L
