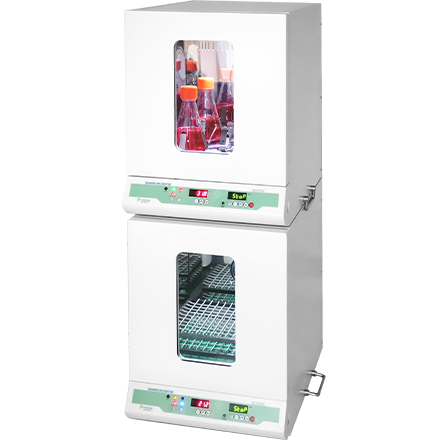

Stackable Shaking Incubator
Catalogue No.
Supplier
|
Catalogue No.
Stackable Shaking Incubator
Stackable Shaking Incubator
Temp. Range
NB-205QM: Ambient +5°C ~ 60°C
NB-205QMC: 15°C ~ 60°C at 25°C RT
Chamber Capacity
70 L Capacity for up to
1 L Flask × 4 ea / 2 L × 1 ea
Key Features
✓ Stackable Shaking Incubator
✓ Incubator equipped with one low-noise shaker driven by a BLDC motor
✓ A high-quality incubator equipped with a smart air circulation system for stable temperature maintenance
| MODEL | NB-205QM | NB-205QMC (Peltier) | |
|---|---|---|---|
| Chamber Volume | 70L | ||
| Loading Capacity | 1Lx4ea, 2Lx1ea | ||
| Maximum Load | 4.5kg | ||
| Built-in Apparatus | 1 Shaker | ||
| Temperature | Range | Ambient +5°C to 60°C (at 25°C RT) | 15°C to 60°C (at 25°C RT) |
| Accuracy | ±0.5°C (*1) | ||
| Increment | – | ||
| Heating / Cooling | Heater (300W), Cooling Not Available | Peltier (72W x 3) | |
| Safety | Safety Thermostat (Accuracy ±5°C) | ||
| Control | – | ||
| RPM | Range | 30 to 300rpm (Upper stacked incubator 200rpm) | |
| Accuracy | – | ||
| Increment | – | ||
| Control | – | ||
| Time | Range | Continuous or 99h 59min | |
| Accuracy | – | ||
| Increment | – | ||
| Heating | Forced Convection | 5-side Direct Heating | |
| Operating Temperature | +5°C to 35°C | ||
| Motion | Orbital | ||
| Orbital Diameter | 22mm | ||
| Filter | – | ||
| Alarm | Temperature, Door, Shaker Audible and Indicator Lamp | ||
| Chamber Material | SUS304 | ||
| Motor | – | ||
| Shelves | – | ||
| Door | Magnetic Door with Double-Pane Glass Window | ||
| Display | LED Display | ||
| Operating Panel | Tact Switch Buttons | ||
| Standard Plate | Base Plate with Non-Slip Rubber Mat on Shaker | ||
| Internal Lamp | 4W LED | ||
| Dimensions | Platform | 300(W)x330(D)mm | |
| Interior | – | 480(W)x435(D)x694(H)mm | |
| Exterior | 470(W)x630(D)x550(H)mm | ||
| Weight | 48kg | 55kg | |
| Power (110V available) | AC220V, 50/60Hz | – | |
| Power Consumption | 320W | 450W | |
