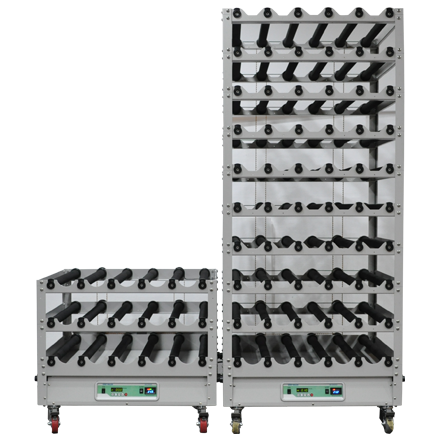

Floor-standing or Benchtop Roller Bottle Shaker
Catalogue No.
Supplier
|
Catalogue No.
Floor-standing or Benchtop Roller Bottle Shaker
Floor-standing or Benchtop Roller Bottle Shaker
RPM Range: 1 ~ 30 rpm
Loading Capacity: 10 bottles (Ø110–120 mm) / 1 Layer
✓ Large loading capacity up to 100 bottles
✓ High-durability polyurethane belt and a lightweight aluminum body
✓ Equipped with lockable casters for easy mobility and secure placement
BLDC Motor
Equipped with a BLDC motor that minimizes vibration and noise, ensuring smooth and uniform container rotation.
High-Capacity Multi-Tier Design
Each roller deck can hold up to 10 containers (2 L each), allowing a total of 100 containers when using 10 decks simultaneously.
Selectable from 2 to 10 Roller Decks
The number of roller decks can be customized from 2 to 10, allowing users to choose the optimal setup according to their research needs.
Compatible with Large-Capacity Incubators
Designed for convenient use inside large incubators such as Global Lab-BIOTEK’s Max Cell Giant (NB-203QRXL / 205QRXL) to accommodate high-volume experiments.
Alarm System
An integrated alarm system provides real-time alerts in case of belt or motor malfunction.
| MODEL | NB-204MR | NB-204GR3 | NB-204GR10 | |
|---|---|---|---|---|
| Capacity (2L Bottle Length Below 250mm) |
110mm to 120mm, 4ea | 110mm to 120mm, 30ea | 110mm to 120mm, 100ea | |
| RPM | Range | 1 to 30rpm (*Based on 2L Bottle RPM) | ||
| Accuracy | ±1rpm | ±0.1rpm | ±0.1rpm | |
| Increment | 0.1rpm | 0.1rpm | 0.1rpm | |
| Control | Microprocessor Digital Controller | |||
| Time | Range | Continuous or 99h 59min | ||
| Accuracy | ±1% | |||
| Alarm | Function | – | Buzzer, Display | |
| Motor | Type | DC Motor | ||
| Control | 32 bit DSP PWM Drive | |||
| Input Voltage | ±10% DC24V | |||
| Display | LED Display | |||
| Operating Panel | Tact Switch Button | |||
| Operating Environment | Temperature | 0 to 50°C | ||
| Humidity | 35 to 85%RH | |||
| Dimensions | Roller Deck | 362(W)x299(D)mm | 750(W)×564(D)mm | 750(W)×564(D)mm |
| Exterior | 375(W)x370(D)x345(H)mm | 756(W)×625.5(D)x642(H)mm | 756(W)×625.5(D)x1799(H)mm | |
| Weight | 12.5kg | 40kg | 80kg | |
| Power (110V available) | AC220, 50/60Hz | AC220, 50/60Hz | AC220, 50/60Hz | |
| Power Consumption | 13W | 70W | 75W | |
