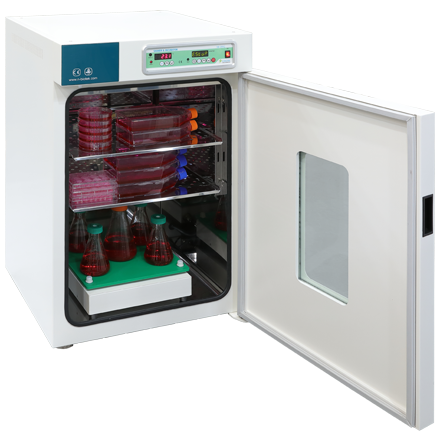

General Incubator with Built-in Roller or Shaker
Catalogue No.
Supplier
|
Catalogue No.
General Incubator with Built-in Roller or Shaker
General Incubator with Built-in Roller or Shaker
Temp. Range
Ambient +5°C ~ 60°C
Chamber Capacity
142 L
Key Features
General incubator equipped with shelves, built-in rollers, or built-in shakers for various cell-culture applications
Uniform and stable temperature control through MICROPROCESSOR PID
Easy internal observation without opening the door through an external viewing window
| MODEL | NB-205Q | NB-205QR | |
|---|---|---|---|
| Chamber Volume | 142L | ||
| Built-in Apparatus | 1 Shaker | 2-layer Roller Rack (2 Bottles for Each Layer) |
|
| Temperature | Range | Ambient +5°C to 60°C | |
| Accuracy | ±0.25°C at 37°C | ||
| Increment | 0.1°C | ||
| Control | Microprocessor Digital PID | ||
| RPM | Range | 30rpm to 300rpm | 1rpm to 30rpm |
| Accuracy | ±0.1rpm | ||
| Increment | 1rpm | 0.1rpm | |
| Control | Microprocessor Digital Controller | ||
| Heating | 5-side Direct Heating | Forced Convection | |
| Time | Range | Continuous or 99h 59min | |
| Accuracy | 0.1% | ||
| Increment | 1 minute | ||
| Memory | – | Running time | |
| Chamber Material | SUS304 | ||
| Motor | Plate Type BLDC Motor | DC Motor | |
| Shelves | 2 Shelves | 1 Shelf | |
| Door | Magnetic Door with Double-Pane Glass Window | ||
| Display | LED Display | ||
| Operating Panel | Tact Switch Button | ||
| Dimensions | Interior | 480(W)x435(D)x694(H)mm | |
| Exterior | 545(W)x545(D)x870(H)mm | ||
| Weight | 65kg | 70kg | |
| Power (110V available) | AC220V, 50/60Hz | AC220V, 50/60Hz | |
| Power Consumption | 410W | ||
