So comfortable, your cells will feel in vivo

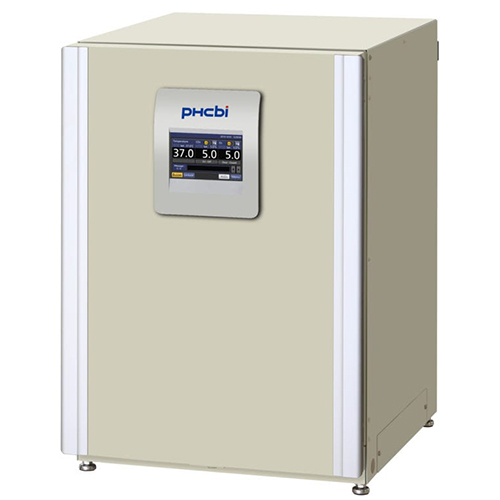

The IncuSafe MCO-170M Multigas Incubator offers the most precise regulation of oxygen and other gases, while maintaining superior temperature uniformity, contamination control, and usability.
Catalogue No.
Supplier
|
Catalogue No.
So comfortable, your cells will feel in vivo
The IncuSafe MCO-170M Multigas Incubator offers the most precise regulation of oxygen and other gases, while maintaining superior temperature uniformity, contamination control, and usability.
So comfortable, your cells will feel in vivo
The IncuSafe MCO-170M Multigas Incubator offers the most precise regulation of oxygen and other gases, while maintaining superior temperature uniformity, contamination control, and usability.
| External Dimensions (W x D x H) | 620 x 730 x 905 mm |
|---|---|
| Internal Dimensions (W x D x H) | 490 x 523 x 665 mm |
| Volume | 161 liters |
| Net Weight | 77 kg |
| Temperature Control Range & Fluctuation | AT +5 ~ +50, ±0.1 °C |
| Temperature Uniformity | ±0.25 °C |
| CO2 Control Range & Fluctuation | 0 ~ 20, ±0.15 % |
| O2 Control Range & Fluctuation | 1 -18 and 22 – 80, ±0.2 % |
| Humidity Level & Fluctuation | 95, ±5 %RH |
| Sterilisation Method | H2O2 Decontamination |
| Temperature Sensor | Thermistor |
| CO2 Sensor | Dual IR |
| O2 Sensor | Stabilized Zirconia Sensor |
| Display | Touch Panel (WVGA full color LCD) and USB data logging |
| Exterior Material | Painted Steel (rear cover not painted) |
| Interior Material | Stainless Steel Copper-Enriched Alloy |
| Insulation Material | Styrene AcryloNitrile copolymer |
| Heating Method | Direct Heat & Air Jacket System |
| Outer Doors | 1 |
| Outer Door Lock | Optional |
| Field Reversible Door | Included |
| Inner Doors | 4 gastight – made of tempered glass |
| Shelves | 3 supplied as standard |
| Shelf Dimensions (W x D x H) | 470 x 450 x 12 mm |
| Max. Load Per Shelf | 7 kg |
| Max. Shelf Capacity | 10 |
| Access Port | 1 |
| Access Port Position | Rear Upper Left |
| Access Port Diameter | 30 |
| Power Failure | R |
| Out of Temperature Setting | V-B-R |
| High Temperature | V-B-R |
| Out of CO2 Setting | V-B-R |
| Out of O2 Setting | V-B-R |
| Door Open | V-B |
| Power Supply | Local |
| Frequency | Local |
| Noise Level | 25 dB |
