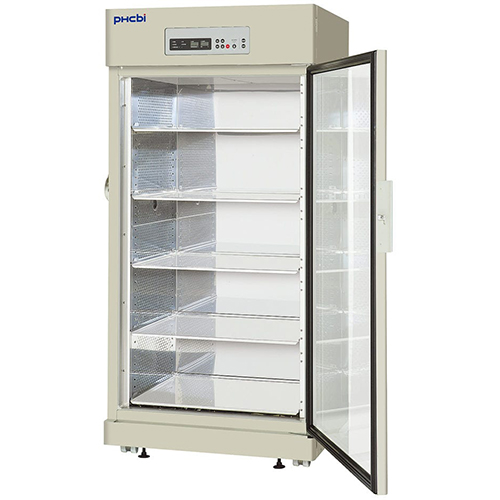

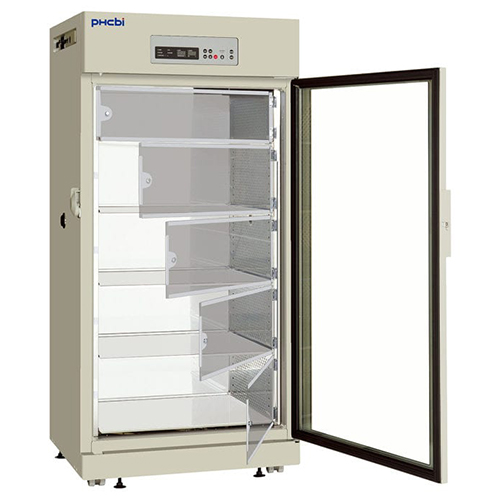

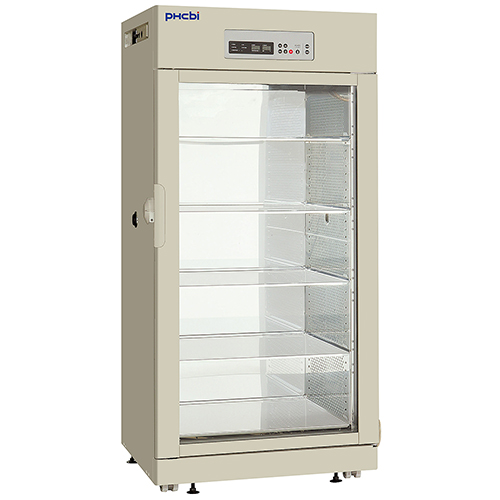

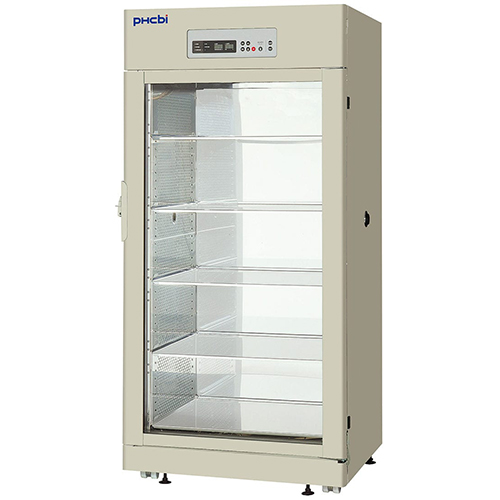

Large-scale cell culture CO2 Incubator
The IncuSafe MCO-80IC is a large capacity, Reach-in CO2 Cell Culture Incubator, ideal for culturing large volumes of patient samples, performing short-term studies, and working with large volume cell culture apparatus. Superior contamination control with an antibacterial copper-alloy stainless interior that helps eliminate molds, spores and other contaminating spills, kills mycoplasma and provides a noncorrosive environment
Large-scale cell culture CO2 Incubator
The IncuSafe MCO-80IC is a large capacity, Reach-in CO2 Cell Culture Incubator, ideal for culturing large volumes of patient samples, performing short-term studies, and working with large volume cell culture apparatus. Superior contamination control with an antibacterial copper-alloy stainless interior that helps eliminate molds, spores and other contaminating spills, kills mycoplasma and provides a noncorrosive environment
| External Dimensions (W x D x H) | 986 x 853 x 2040 mm |
|---|---|
| Internal Dimensions (W x D x H) | 806 x 693 x 1524 mm |
| Volume | 851 liters |
| Net Weight | 275 kg |
| Temperature Control Range & Fluctuation | AT +5 ~ +50, (AT; 20oC to 35oC) ±0.1 °C |
| Temperature Uniformity | ±0.5 °C |
| CO2 Control Range & Fluctuation | 0 ~ 20, ±0.15 % |
| O2 Control Range & Fluctuation | – |
| Humidity Level & Fluctuation | Normal mode; >80 | High mode; > 90 %RH |
| Sterilisation Method | – |
| Temperature Sensor | Thermistor |
| CO2 Sensor | IR |
| O2 Sensor | – |
| Display | |
| Exterior Material | Painted Steel |
| Interior Material | Stainless Steel Copper-Enriched Alloy |
| Insulation Material | Rigid polyurethane foamed-in place (CFC-Free) |
| Heating Method | Horizontal laminar airflow system |
| Outer Doors | 1 double paned glass |
| Outer Door Lock | N/A |
| Field Reversible Door | Included |
| Inner Doors | – |
| Shelves | |
| Shelf Dimensions (W x D x H) | 776 x 659 x 10 mm |
| Max. Load Per Shelf | 30 kg |
| Max. Shelf Capacity | 37 |
| Access Port | 2 |
| Access Port Position | Left and right hand side |
| Access Port Diameter | 40 |
| Power Failure | R |
| Out of Temperature Setting | V-B-R |
| High Temperature | V-B-R |
| Out of CO2 Setting | V-B-R |
| Out of O2 Setting | – |
| Door Open | V |
| Power Supply | Local |
| Frequency | Local |
| Noise Level | 33 dB |
