Large Capacity Incubator (MaxCell Giant)
1200L Large Capacity Incubator with Observation Window
Catalogue No.
Supplier
|
Catalogue No.
Large Capacity Incubator (MaxCell Giant)
1200L Large Capacity Incubator with Observation Window
Large Capacity Incubator (MaxCell Giant)
1200L Large Capacity Incubator with Observation Window
This large capacity incubator is available to use large volume or variety cell culture containers and electric equipment or roller apparatus in constant temperature, CO2 control. Effective air flow system makes excellent temperature control and also enables the uniformity of CO2 density in the big chamber.
| MODEL | NB-203QRXXL | NB-205QRXXL | |
|---|---|---|---|
| Chamber Volume | 42.5 cu ft / 1204L | ||
| Temperature | Range | Ambient +7°C to +60°C at 25°C RT | |
| Increment | ±0.1°C | ||
| Uniformity | Temp ±0.5°C to ±0.7°C at 37°C and 25°C RT | ||
| Recovery | 12min at 37°C After Door Open for 5min | ||
| Safety | Independent Over Temperature Thermostat | ||
| CO2 | Range | 0 to 20% | n/a |
| Accuracy | ±0.1% at 5% (at 37°C) | n/a | |
| Sensor | Dual Beam NDIR CO2 Sensor | n/a | |

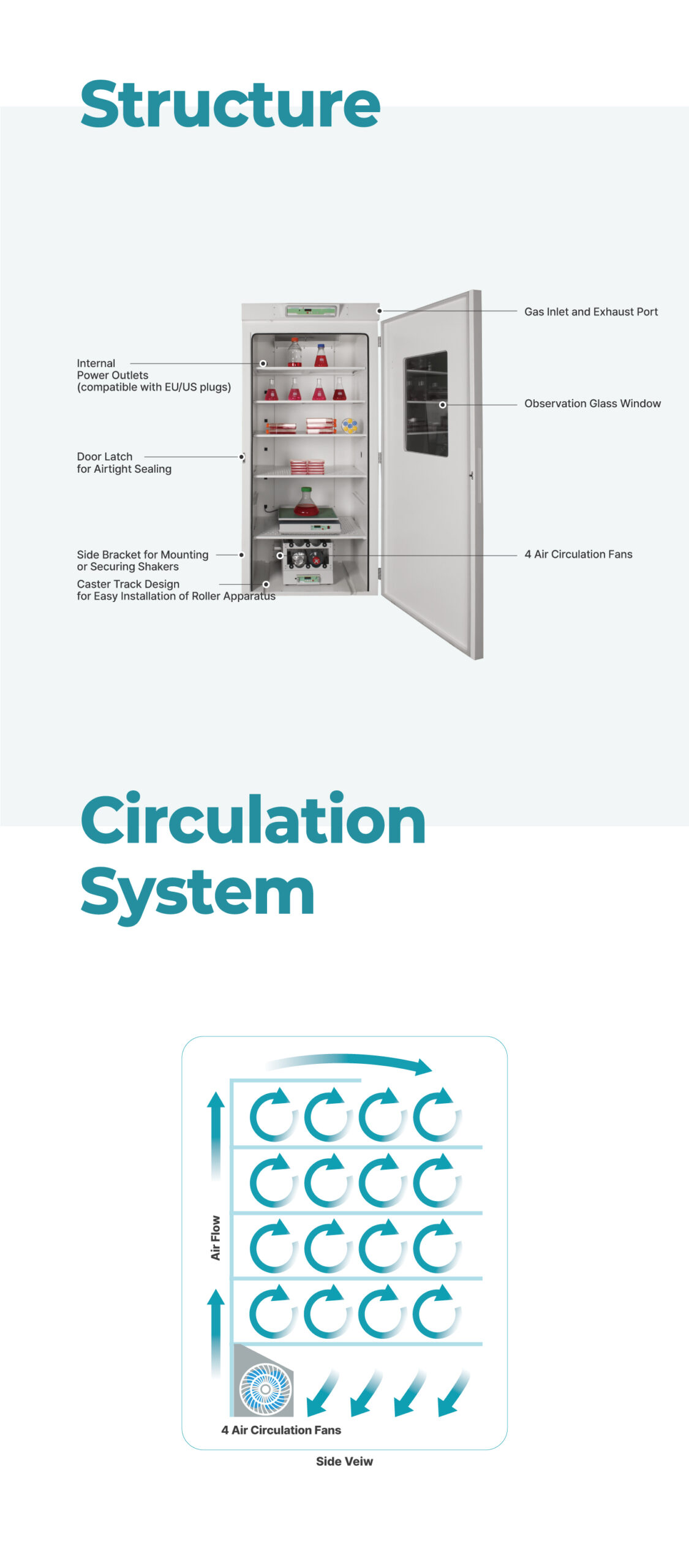

| Heating | 5-side Direct Heating with Forced Air Flow by 4 Circulation Fans | ||
| Alarm Function | Temperature, CO2, Door Open | Temperature, Door Open | |
| Analogue Output | Temp, CO2, Alarm Contact, Roller Alarm Contact | Temp, Alarm Contact, Roller Alarm Contact | |
| Chamber Material | SUS304 | ||
| Filter | HEPA Filter | ||
| Interior Outlet | Same Voltage of Instrument / 7 Outlets (Standard) | ||
| Electric Safety | Fuse 15A for Incubator / Fuse 10A for Interior Outlet | ||
| Shelves | Optional, Max 35ea | ||
| Door | Magnetic Door with Double-Pane Glass Window | ||
| Display | LED Display | ||
| Dimensions | Interior | 868(W)×720(D)×1928(H)mm | |
| Exterior | 990(W)×855(D)×2123.5(H)mm | ||
| Power (110V available) | AC220V, 50/60Hz | ||
| Power Consumption | 690W | 850W | |
