Small-scale RUO Processing Assemblies
Static electroporation processing assemblies for research applications in small volume scales with both single-well and multi-well options.

Small-scale RUO Processing Assemblies

Static electroporation processing assemblies for research applications in small volume scales with both single-well and multi-well options.

Research Use Only (RUO) Processing assemblies aid the discovery and development of applications at small scales. These static electroporation consumables are made from high-grade, inert materials to protect precious cells with additional design features for easy sample loading and recovery.

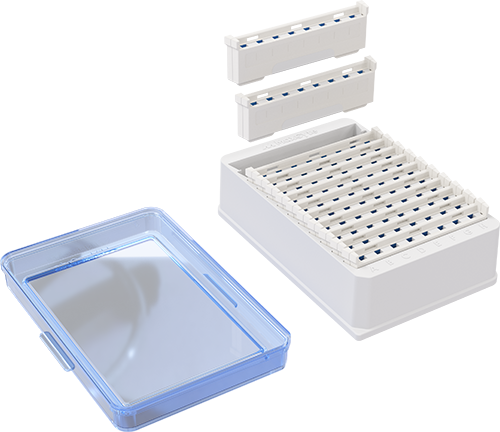

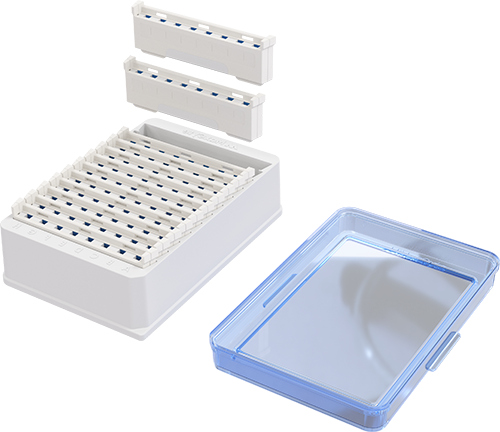

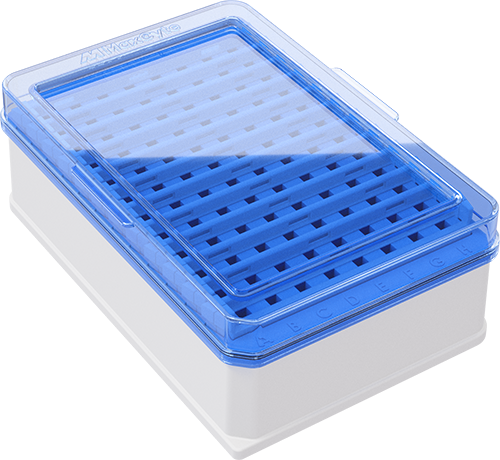

R-50×8™

• 8-wells for increased throughput; lower cost per transfection
• U-shaped well design for efficient cell loading and recovery
• Sample tracking with A-H lettering and front writing space

Configuration: 8-well, 55 µL maximum volume per well
Cell Range: 2.25×10⁵ – 1.1×10⁷ per well
Volume Range: 45 – 55 µL per well
Application: Research Use Only
Catalog: ER050U8-03
Compatible with: ATx™ and STx™

In your source the Cell Range was written “2.25×105– 1.1×107” with no superscript tags. I read those as 10⁵ and 10⁷, which fits the other products, so check that against the original.

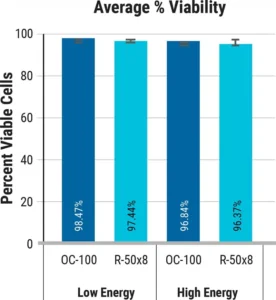

Graph Details: K562 cells at 5×107 cells/mL were electroporated with plasmid DNA encoding GFP at low energy (Opt-1) and high energy (Opt-10). Four R-50×8 PAs and eight OC-100 PAs were evaluated at each energy level for both GFP expression and cell viability 48 hours post-transfection via flow cytometry analysis. Results are an average of 16 wells for the R-50×8 and 8 wells for the OC-100 for each energy level.
