Cost-saving and environmentally friendly sample storage within an optimal footprint

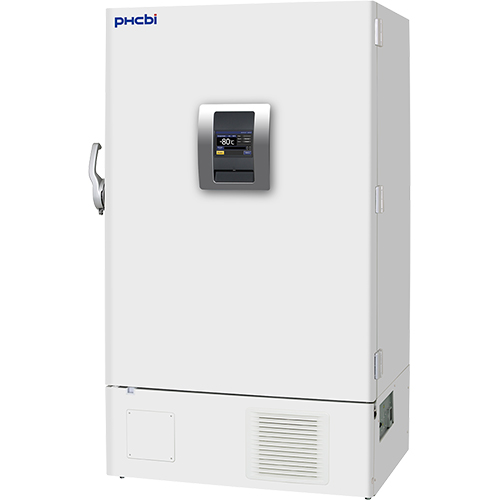

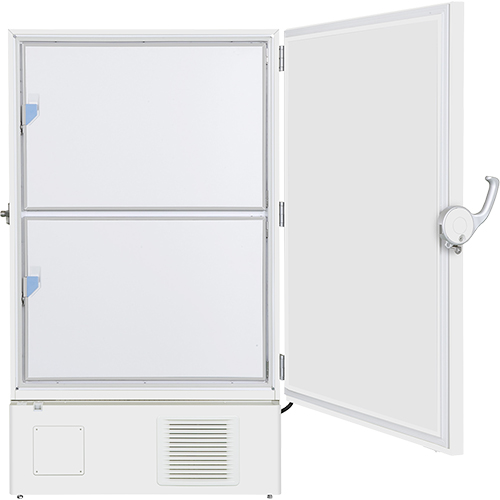

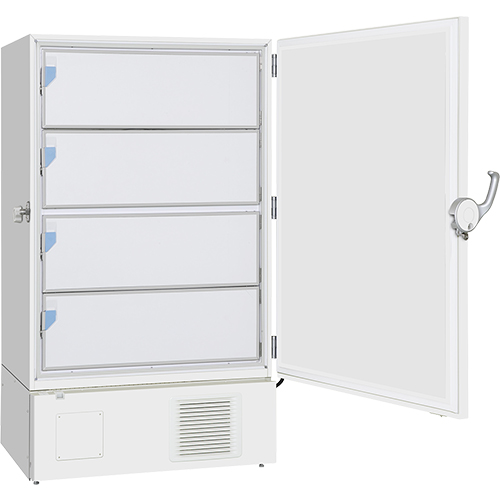

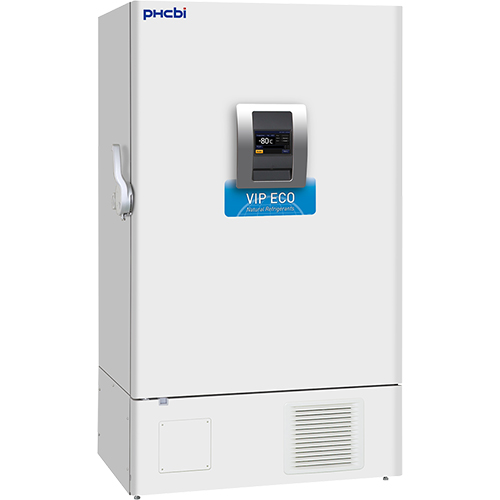

Both VIP ECO models MDF-DU901VHL, MDF-DU901VHA are large volume high performance -86°C upright freezers ideal for use in biorepositories or facilities where bulk storage of sensitive biological is managed. Natural refrigerants minimise its energy consumption to reduce environmental impact. VIP ECOs allow a footprint of just 1m2 for maximum storage.
Cost-saving and environmentally friendly sample storage within an optimal footprint
Both VIP ECO models MDF-DU901VHL, MDF-DU901VHA are large volume high performance -86°C upright freezers ideal for use in biorepositories or facilities where bulk storage of sensitive biological is managed. Natural refrigerants minimise its energy consumption to reduce environmental impact. VIP ECOs allow a footprint of just 1m2 for maximum storage.
| External Dimensions (W x D x H) | 1150 x 870 x 1993mm |
|---|---|
| Internal Dimensions (W x D x H) | 1010 x 600 x 1400 mm |
| Volume | 845 litres |
| Net Weight | 328 kg |
| Capacity (2” Boxes in Stainless Steel Racks) | 616 (2” boxes) |
| Capacity (3” Boxes in Stainless Steel Racks) | |
| Cooling Performance | -86 °C |
| Temperature Setting Range | -50 to -90 °C |
| Temperature Control Range | -50 to -86 °C |
| Controller | Microprocessor, non-volatile memory |
| Display | LCD Touch Screen |
| Temperature Sensor | Pt-1000 |
| Refrigeration System | Cascade |
| Compressors | 2 x 1000 W |
| Refrigerant | HC |
| Insulation Material | PUF / VIP Plus |
| Insulation Thickness | 70 mm |
| Exterior Material | Painted Steel |
| Interior Material | Painted Steel |
| Outer Doors/Lid | 1 |
| Outer Door Lock | Y |
| Inner Doors/Lid | 2 [insulated] |
| Shelves | 3 [stainless steel] |
| Max. Load – Per Shelf | 50 kg |
| Max. Load – Total | |
| Vacuum Release Port | Y |
| Access Port | 2 |
| Access Port Position | back x 1, bottom x 2 |
| Access Port Diameter | 17 |
| Casters | 4 (2 leveling feet) |
| Power Failure | V-B-R (V=Visual Alarm, B=Buzzer Alarm, R=Remote Alarm) |
| High Temperature | V-B-R |
| Low Temperature | V-B-R |
| Filter | V |
| Door Open | V-B |
| Power Supply | MDF-DU901VHL-PE (220/230/240V) | MDF-DU901VHA-PA (115V) |
| Frequency | MDF-DU901VHL-PE (50Hz) | MDF-DU901VHA-PA (160Hz) |
| Noise Level | 52 dB [A] |
