Stable -30°C environment with extensive storage possibilities

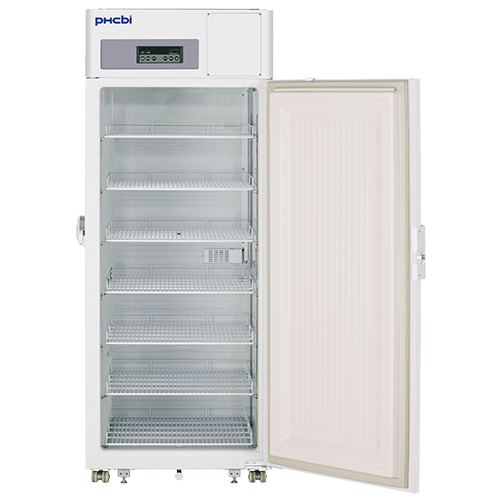

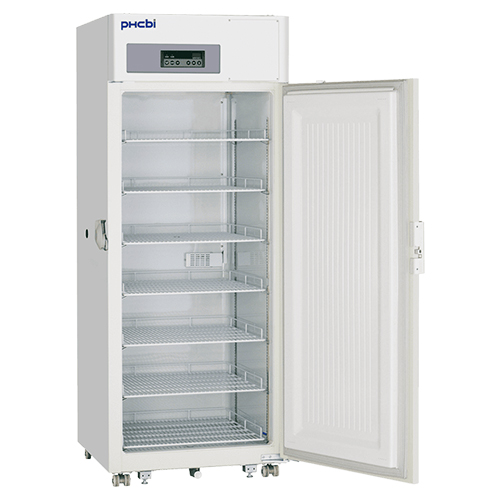

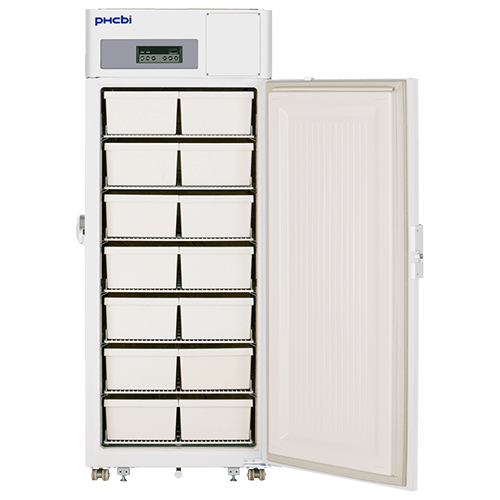

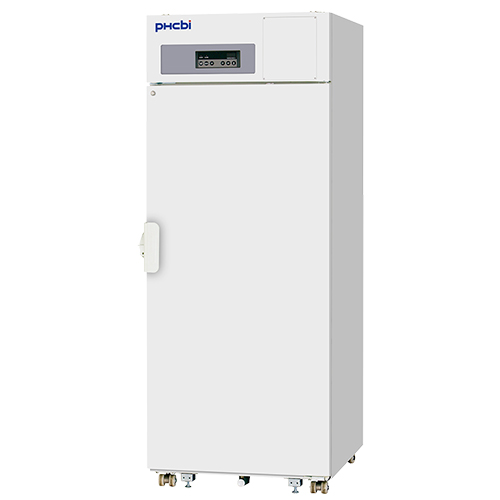

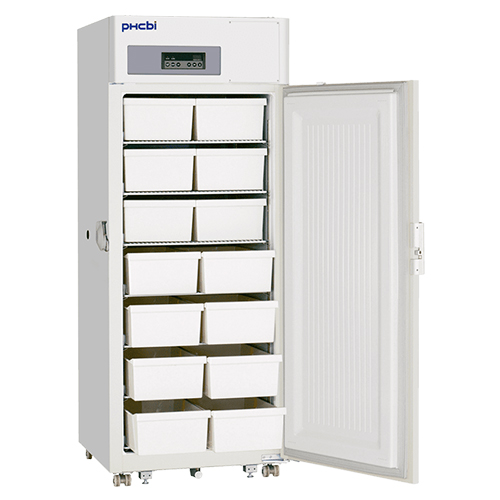

The MDF-U731M is a large-capacity Biomedical Freezer, with a direct cooling system and manual defrost. The MDF-U731M Biomedical Freezer is designed with all the features for “Plug-in and Go” laboratory grade freezing of enzymes, vaccines, and other biologics.
Stable -30°C environment with extensive storage possibilities
The MDF-U731M is a large-capacity Biomedical Freezer, with a direct cooling system and manual defrost. The MDF-U731M Biomedical Freezer is designed with all the features for “Plug-in and Go” laboratory grade freezing of enzymes, vaccines, and other biologics.
| External Dimensions (W x D x H) | 770 x 830 x 1955 mm |
|---|---|
| Internal Dimensions (W x D x H) | 650 x 700 x 1520 mm For MDF-U731M 650 x 700 x 1370 mm For MDF-U731 |
| Volume | 690 litres For MDF-U731M 623 liters For MDF-U731 |
| Net Weight | 152 kg For MDF-U731M 155 kg For MDF-U731 |

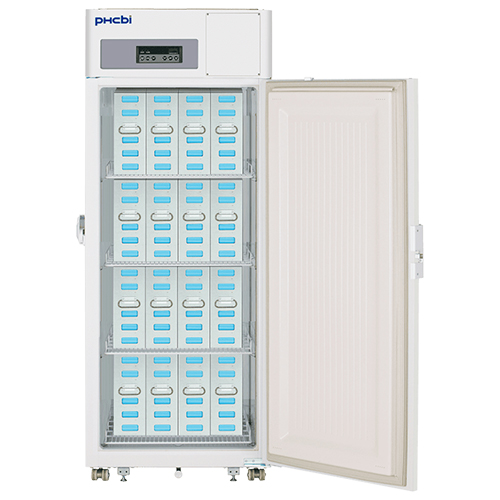

| Capacity (Aluminium Racks 2” Boxes) | 384 (2” boxes) |
| Capacity (Stainless Steel Racks 2” Boxe) | – |
| Cooling Performance | -30 °C |
| Temperature Setting Range | -18 to -35 °C |
| Temperature Control Range | -20 to -30 °C |
| Controller | Microprocessor, non-volatile memory |
| Display | LED |
| Temperature Sensor | Thermistor |
| Refrigeration System | Cold wall with Manual Defrost For MDF-U731M Forced air with Automatic Defrost For MDF-U731 |
| Compressors | 400 W |
| Refrigerant | HFC and HFO combined |
| Insulation Material | PUF |
| Insulation Thickness | 60 mm |
| Exterior Material | Painted Steel |
| Interior Material | Painted Steel |
| Outer Doors/Lid | 1 |
| Outer Door Lock | Y |
| Inner Doors/Lid | – |
| Shelves | |
| Max. Load – Per Shelf | 50 kg |
| Max. load – Total | 200 kg |
| Vacuum Release Port | – |
| Access Port | 1 |
| Access Port Position | Left |
| Access Port Diameter | 30 |
| Casters | 4 (2 leveling feet) |
| Power Failure | V-B-R |
| High Temperature | V-B-R |
| Low Temperature | V-B-R |
| Filter | – |
| Door Open | V-B |
| Power Supply | MDF-U731M available with 115V & 230/240V MDF-U731 available with 115V |
| Frequency | MDF-U731M available with 50 & 60Hz MDF-U731 available with 60Hz |
| Noise Level | 42 dB [A] |
