Providing a complete storage solution; refrigerator and freezer in one unit
The MPR-N250FH-PE combines high-performance refrigeration with a -30°C freezing environment within a small footprint for flexible, reliable and convenient sample storage. Natural refrigerants minimize environmental impact for a sustainable storage solution.
Providing a complete storage solution; refrigerator and freezer in one unit
The MPR-N250FH-PE combines high-performance refrigeration with a -30°C freezing environment within a small footprint for flexible, reliable and convenient sample storage. Natural refrigerants minimize environmental impact for a sustainable storage solution.
| External Dimensions (W x D x H) | 510 x 640 x 1810 mm |
|---|---|
| Internal Dimensions (W x D x H) | 430 x 516 x 903 mm (Ref) / 390 x 501 x 413 mm (Frz) |
| Volume | 179/80 litres (Ref/Frz) |
| Net Weight | 95 kg |
| Temperature Setting Range | – |
| Temperature Control Range | +2 to +14 °C (Ref) / -30 to -20 °C (Frz) |
| Controller | Microprocessor, non-volatile memory |
| Display | Digital (White graphic Organic LED), 1 °C (increment of 0.1) |
| Temperature Sensor | Thermistor |
| Cooling Method | Fan forced air circulation (Ref) / Direct cooling (Frz) |
| Defrost Method | Cyclical defrost (Ref) / Manual (Frz) |
| Refrigerant | R-600a (Ref) / R-290 (HC refrigerant) (Frz) |
| Insulation Material | PUF |
| Exterior Material | Painted steel |
| Interior Material | ABS resin (Ref) / Electro-galvanized steel plate, Polyester resin baked (Frz) |
| Outer Doors | Electro-galvanized steel plate, Polyester resin baked with triple glass window (ref)Electro-galvanized steel plate, Polyester resin baked (Frz) |
| Outer Door Lock | Y |
| Shelves | Tempered glass (3) (Ref) / Coated steel wires (1) (Frz) |
| Drawers | – |
| Max. Load – Per Shelf/Drawer | 20 /10 (Ref/Frz) kg |
| Max. Load – Total | 105 kg |
| Access Port | Two ports available R(1), F(1) |
| Access Port Position | Back |
| Access Port Diameter | 30 |
| Casters | 4 |
| Interior Light | LED |
| Power Failure | R |
| High Temperature | V-B-M-R |
| Low Temperature | V-B-M-R |
| Door Open | V-B-M |
| Power Supply | 230V 50Hz single phase |
| Noise Level | 40 dB [A] |
| Temperature recorders | – |
|---|---|
| Temperature chart recorder | MTR-0621LH-PH |
| Chart paper | RP-06-PW |
| Recorder housing | MPR-S30-PW |
| Circular type5) | MTR-G3504C-PE |
| – Chart paper | RP-G3504-PW |
| – Ink pen | PG-RB-PW |
| – Recorder housing | MPR-S7-PW |
| Continuous strip type | MTR-4015LH-PE |
| – Chart paper | RP-40-PW |
| – Recorder housing | MPR-S30-PW |
| Battery kit for power failure alarm | MPR-48B2-PW3) |
| Wired Shelf for freezer (set of two) | MPR-250ST-PW |
| Door window blanking plates | MPR-25BP-PW |
Appearance and specifications are subject to change without notice.
PUF = Rigid polyurethane foamed insulation V = Visual alarm B = Buzzer alarm M = Message R = Remote alarm

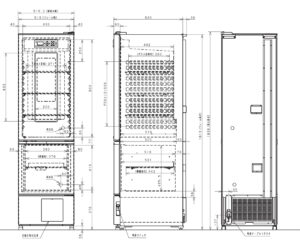

1) Exterior dimensions of main cabinet only, excluding handle (no handle available) and other external projections – See dimensions drawings on website for full details
2) Air temperature measured at refrigeration compartment centre and freezer compartment centre, ambient temperature +30ºC, no load
3) Requires optional battery kit for power failure alarm MPR-48B2-PW
4) Nominal value – Background noise 20dB[A]
5) MTR-G3504-PW has 2 pens (red/blue) per recorder, therefore it can register temperatures inside the freezer as well in the refrigerator
