Our Twinguard Pharmaceutical Refrigerators with sliding doors, perfectly preserve samples, reagents, and pharmaceuticals through high-reliability temperature control and not use for storage of blood and its derivatives. Use of natural HC refrigerants combined with inverter controlled compressors, reduces power consumption by approx. 77% compared with existing models.
Our Twinguard Pharmaceutical Refrigerators with sliding doors, perfectly preserve samples, reagents, and pharmaceuticals through high-reliability temperature control and not use for storage of blood and its derivatives. Use of natural HC refrigerants combined with inverter controlled compressors, reduces power consumption by approx. 77% compared with existing models.

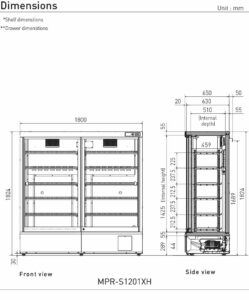

| External Dimensions (W x D x H) | 1800 x 650 x 1824 mm |
|---|---|
| Internal Dimensions (W x D x H) | 1700 x 510 x 1425 mm |
| Volume | 1165 litres |
| Net Weight | 267 kg |
| Temperature Setting Range | |
| Temperature Control Range | +2 to +14 °C |
| Controller | Microcomputer control system |
| Display | OLED |
| Temperature Sensor | Thermistor sensor |
| Cooling Method | |
| Defrost Method | |
| Refrigerant | HC refrigerant |
| Insulation Material | Rigid polyurethane foamed-in place |
| Exterior Material | Painted Steel |
| Interior Material | Painted Steel |
| Outer Doors | 2 |
| Outer Door Lock | Y |
| Shelves | 12 (Hard steel wire with polyethylene coating) |
| Drawers | |
| Max. Load – Per Shelf/Drawer | 50 kg/shelf |
| Max. Load – Total | |
| Access Port | 3 |
| Access Port Position | Back |
| Access Port Diameter | 30 |
| Casters | 6 |
| Interior Light | 24 (LED) |
| Power Failure | R 3) |
| High Temperature | V-B-M-R |
| Low Temperature | V-B-M-R |
| Door Open | V-B-M |
| Power Supply | 220 / 230 / 240 V , 220 / 230 V |
| Noise Level | 42 dB [A] |
*V = Visual Alarm, B = Buzzer Alarm, M = Message, R = Remote Alarm
| Name card holder | |
|---|---|
| Battery kit for power failure alarm | MPR-48B2-PW |
| Temperature recorders | |
| – Circular type | MTR-G04C-PE – Chart paper: RP-G04-PW – Ink pen: PG-R-PW – Recorder mounting bracket |
| – Continuous strip type | MTR-0621LH-PE – Chart paper: RP-06-PW – Recorder mounting bracket MPR-S30-PW |
| Optional Communication Systems | |
| Digital interface (RS232C/RS485) | MTR-480-PW4) |
| Ethernet interface (LAN) | MTR-L03-PW4) |
| MPR-S1201XH | The price might vary in country. Please send the inquiry form for getting quotation. |
|---|
