Airflow Assures Quick Recovery, Interior Uniformity

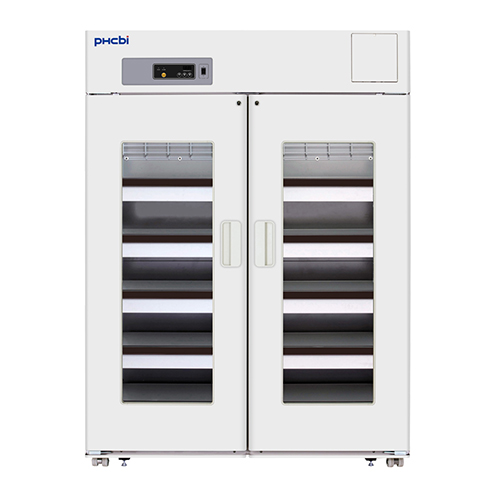

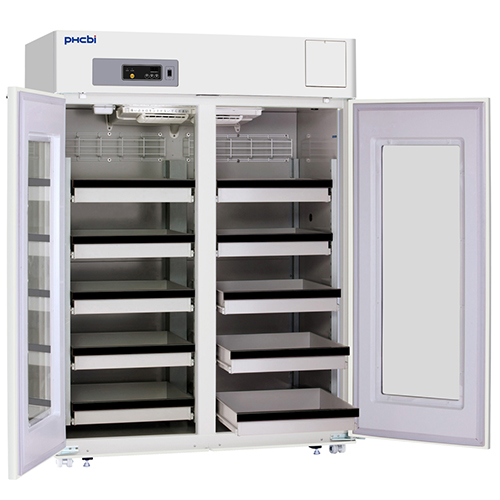

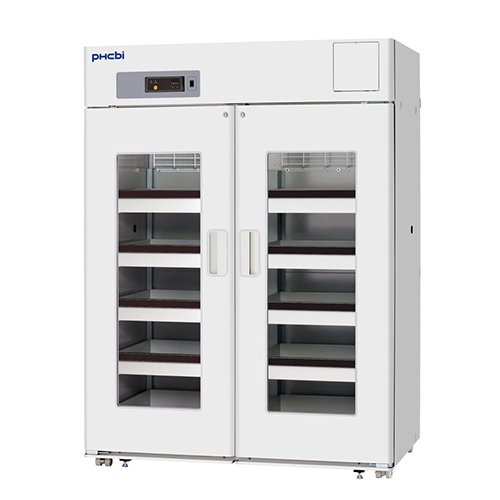

The MPR-1412R large capacity Pharmaceutical Refrigerators (with solid steel drawers) delivers stable, reliable temperature control for clinical, pharmaceutical, biomedical storage and processing. Fast recovery following door openings assures safe storage even with frequent access and high ambient conditions and to remove heat loads generated by powered instruments.
Airflow Assures Quick Recovery, Interior Uniformity
The MPR-1412R large capacity Pharmaceutical Refrigerators (with solid steel drawers) delivers stable, reliable temperature control for clinical, pharmaceutical, biomedical storage and processing. Fast recovery following door openings assures safe storage even with frequent access and high ambient conditions and to remove heat loads generated by powered instruments.
| External Dimensions (W x D x H) | 1440 x 830 x 1950 mm |
|---|---|
| Internal Dimensions (W x D x H) | 1320 x 710 x 1500 mm |
| Volume | 1359 litres |
| Net Weight | 287 kg |
| Temperature Setting Range | +2 to +23 °C |
| Temperature Control Range | +2 to +14 °C (at fridge part center, AT -5 to 0ºC) +2 to +23 °C (at fridge part center, AT 0 to 35ºC) |
| Controller | Microprocessor with non-volatile memory (Safety Lock with keypad) |
| Display | LED |
| Temperature Sensor | Thermistor |
| Cooling Method | Forced cool air circulation |
| Defrost Method | Forced type (cycle defrost), fully automatic |
| Refrigerant | HFC and HFO combined (CFC-Free) |
| Insulation Material | Rigid polyurethane foamed insulation (CFC-free) |
| Exterior Material | Painted steel |
| Interior Material | Painted steel |
| Outer Doors | 2 doors, double pane glass, self closing |
| Outer Door Lock | Y |
| Shelves | 10 solid steel drawers (painted steel, 550 x 530 x 100 mm, adjustable) |
| Drawers | N |
| Max. Load – Per Shelf/Drawer | 40 kg |
| Max. Load – Total | 400 kg |
| Access Port | 3 |
| Access Port Position | Left / Right / Top |
| Access Port Diameter | 30 mm |
| Casters | 4 |
| Interior Light | Fluorescent |
| Power Failure | R (V-B optional) (V=Visual alarm, B=Buzzer, R=Remote alarm) |
| High Temperature | V-B-R (V=Visual alarm, B=Buzzer, R=Remote alarm) |
| Low Temperature | V-B-R (V=Visual alarm, B=Buzzer, R=Remote alarm) |
| Door Open | V-B (V=Visual alarm, B=Buzzer) |
| Power Supply | Local |
| Noise Level | 48 dB [A] |
