Providing a complete storage solution; refrigerator and freezer in one unit

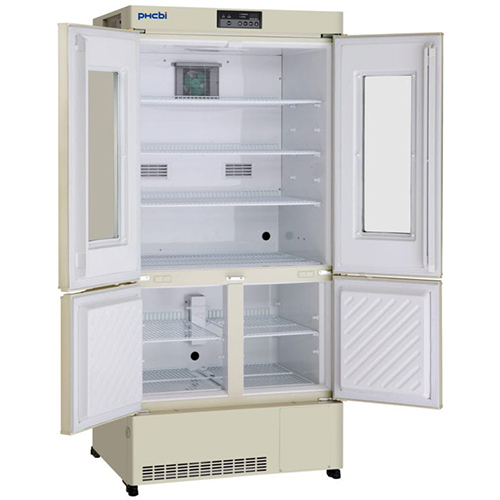

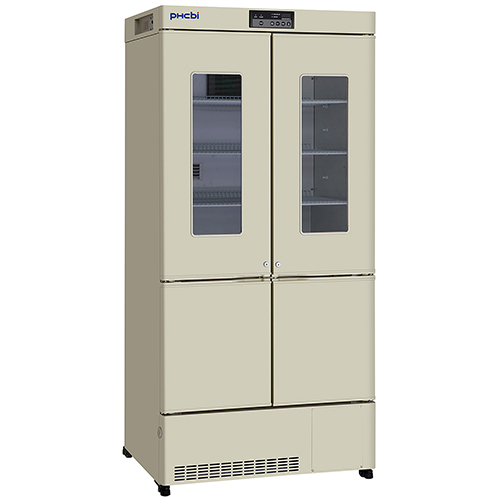

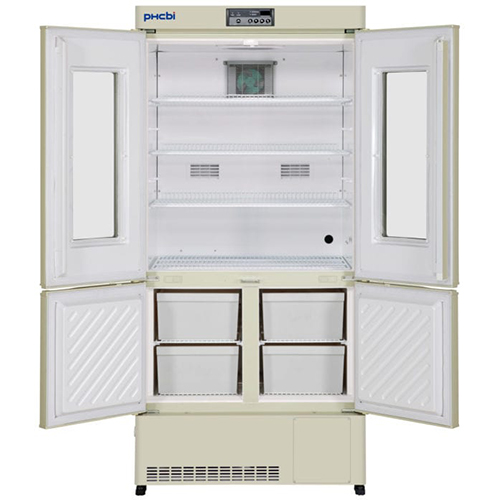

The MPR-715F combines high-performance refrigeration with a -30°C freezing environment within a small footprint for flexible, reliable and convenient sample storage. PHCbi refrigerators are designed specifically for laboratory applications with precise performance even under demanding conditions.
Providing a complete storage solution; refrigerator and freezer in one unit
The MPR-715F combines high-performance refrigeration with a -30°C freezing environment within a small footprint for flexible, reliable and convenient sample storage. PHCbi refrigerators are designed specifically for laboratory applications with precise performance even under demanding conditions.
| External Dimensions (W x D x H) | 900 x 715 x 1910 mm |
|---|---|
| Internal Dimensions (W x D x H) | 810 x 615 x 1894 mm (Ref) / 770 x 552 x 422 mm (Frz) |
| Volume | 415/176 litres (Ref/Frz) |
| Net Weight | 168 kg |
| Temperature Setting Range | +2 to +14 °C (Ref) / -20 to -30 °C (Frz) |
| Temperature Control Range | +2 to +14 °C (Ref) / -20 to -30 °C (Frz) |
| Controller | Microprocessor |
| Display | LED |
| Temperature Sensor | Thermistor |
| Cooling Method | Fan forced air circulation (Ref) / Direct cooling (Frz) |
| Defrost Method | Cyclical defrost (Ref) / Manual (Frz) |
| Refrigerant | |
| Insulation Material | PUF |
| Exterior Material | Painted steel |
| Interior Material | Styrol resin (Ref) / Painted aluminium (Frz) |
| Outer Doors | 4, glass window (2) |
| Outer Door Lock | Y |
| Shelves | |
| Drawers | |
| Max. Load – Per Shelf/Drawer | 25 & 15 (Ref/Frz) kg |
| Max. Load – Total | 105 kg |
| Access Port | 1 |
| Access Port Position | Back |
| Access Port Diameter | 30 |
| Casters | 4 |
| Interior Light | LED |
| Power Failure | V-B-R (Optional) |
| High Temperature | V-B-R |
| Low Temperature | V-B-R |
| Door Open | V-B |
| Power Supply | Local |
| Noise Level | 43 dB [A] |
